The Piccornet AH1-S:



Specifications:

245g Unladen 315g AUW
560mm LOA (690mm LOA inc. Rotor Disks)
500mm Rotor Dia.
3-cell ETech 1200 Hi Dscharge Li-Poly power pack
8/96t Main Motor Gear Ratio
2200 RPM Main Rotor Headspeed
~20 Mins Flying Time per charge

Construction:

Modified Ikarus ECO Piccolo Main Frame
Modified Retrofit Landing Gear
Nige's Cardboard AH1-S Cobra Fuselage (Modified)
MS Hornet CCPM CP Assembly
Alu CP Connecting Rods
Alu Stabiliser Anti-rotation Arm
"Long-Arm" 120 Degree Alu Swashplate with ARS
Custom S/S mainshaft by Walt
2.5mm Low Profile dual setscrew mainshaft collar
96t Maingear with integrated one-way bearing
8t Hard Chrome Brass Pinion
H/P Symetrical CP Blades by Walt
Std. Ikarus ECO Piccolo Tail G/Box and Tail Rotor

Motors and Electronics:

Modified Ikarus Piccoboard Plus with H/H Module
(only used for Gyro & Mixing functions)
3 x GWS Pico Servos
Berg 5 DSP 5-channel 72Mhz Rx
Hacker B20-31S Brushless Motor
Phoenix 10 Brushless ESC
Piccolo PRO Tail Motor
Schulze Slim-105He Tail ESC
Polarised Micro Deans Connectors used throughout
Futaba 8UHPS Tx
3-cell ETech 1200mAh Li-Poly battery packs
Orbit Microlader 6 Charger







Click on the pictures to see them in full size.

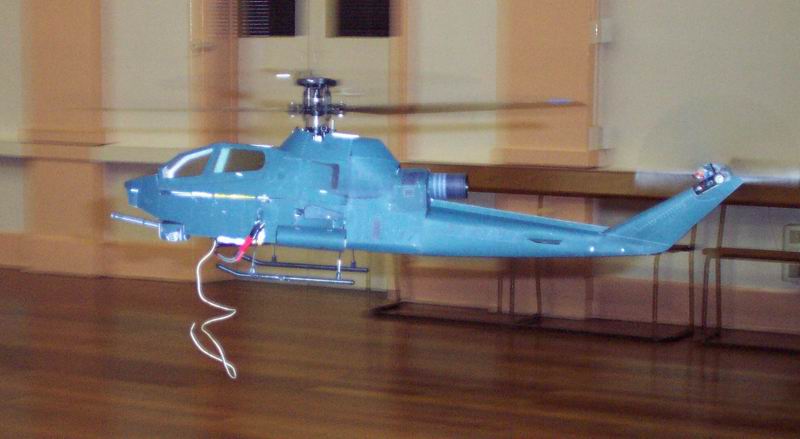

Beating up the hall in fast foward flight. By the looks of the canopy, I think the aircrew wants out!!

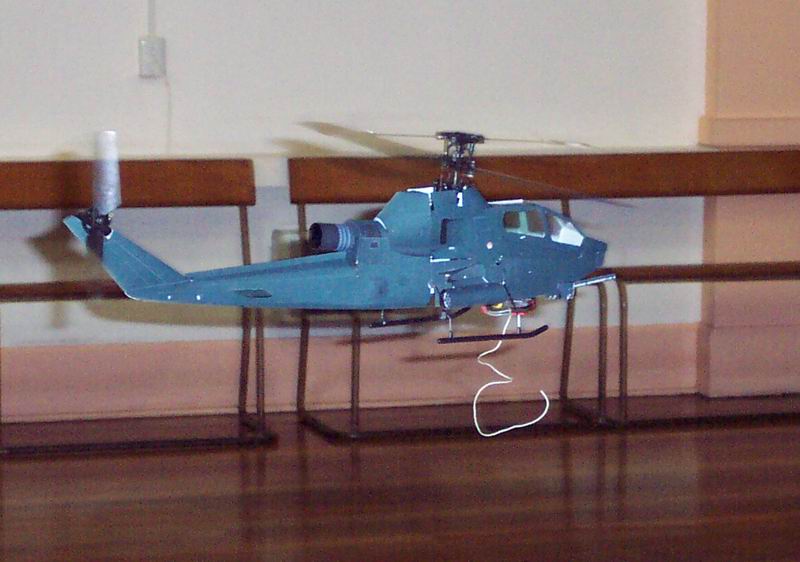

Eeeek! That table is getting close! Hurry up and pop that canopy will ya?

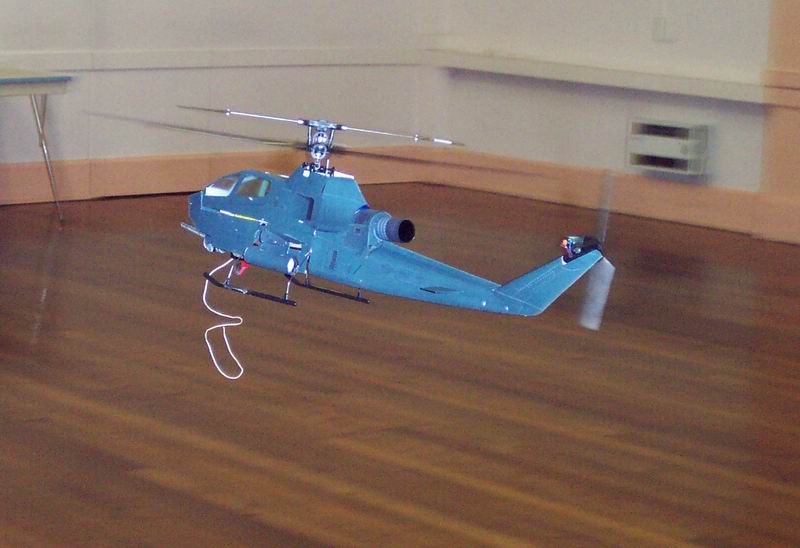

Hmm, that's a bit more sedate.. Maybe we'll stay for a little while longer....
